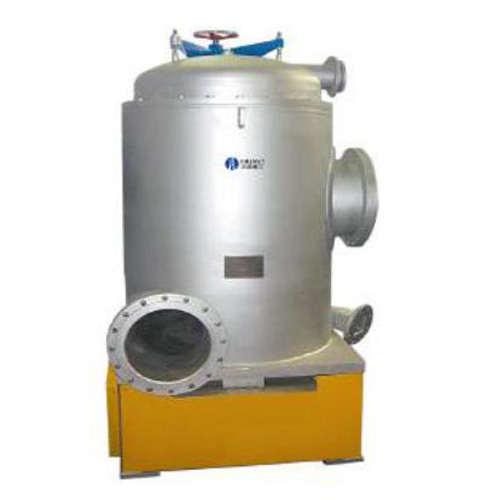

Up-Flow pressure Coarse Screen

Description:

This up-flow pressure coarse screen is distinctively utilized in the coarse sieving of wastepaper pulp.
Its up-flow screening design shortens the stop time of lightweight impurities in the sieving area, while heavy impurities are separated to settle down at the bottom, thereby avoiding excessive abrasion to rotor and screen drum.
This up-flow pressure coarse screen can gently break paper pieces inside pulp, causing no harm to impurities. Moreover, its screen drum can be used in inverted way, which extend the work life of corrugated surface.

Main Technical Parameters of HYC Series Up-flow Pressure Screen(Coarse Screen):

Type	HYC51	HYC52	HYC53	HYC54	HYC55	HYC56
Screen area (m2)	0.6	0.8	1.2	2	3.2	4.2
Diameter of screen mesh (mm)	Φ1.4、Φ1.6、Φ1.8、Φ2.0、Φ2.4
Width of screen seam	0.6
Screen consistency (%)	2-3
Flow rate (t/d)	80-120	110-170	150-250	250-400	350-600	500-800
Motor power (kw)	55/37	75/45	1	200/132	250/185	315/250
Overall dimensions (L×W×H) (mm)	2920×1400×1610	2950×1410×1660	2990×1410×2050	3620×1560×2250	3820×1980×2500	3810×1985×2950

Main Technical Parameters of ZSL Series Up-flow Pressure Screen(Coarse Screen):

Type	ZSL51(C)	ZSL52(C)	ZSL53(C)	ZSL54(C)	ZSL55(C)	ZSL56(C)
Screen area (m2)	0.6	0.8	1.2	2	3	4
Diameter of screen mesh (mm)	Φ1.4、Φ1.6、Φ1.8、Φ2.0、Φ2.4/0.6
Screen consistency (%)	2-3
Flow rate (t/d)	60-120	90-170	130-250	200-400	300-600	400-800
Motor power (kw)	55/37	75/45	1 1/2	200/132	250/185	315/250
Overall dimensions (L×W×H) (mm)	2920×1400×1610	2950×1410×1660	2990×1410×2050	3620×1560×2215	3820×1980×2500	3810×1985×2950

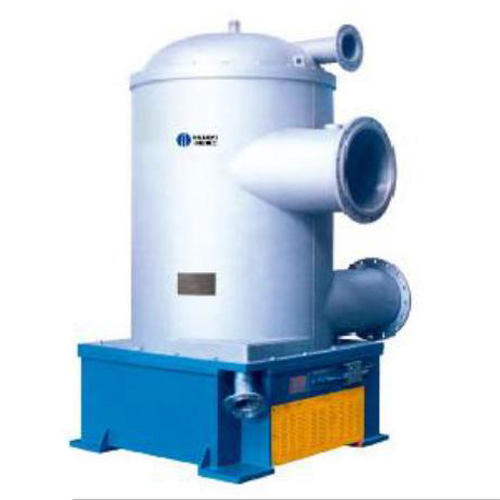

Up-flow Pressure Screen(Coarse Screen)
