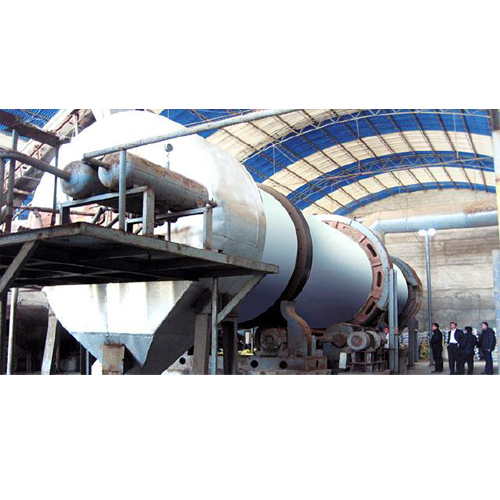

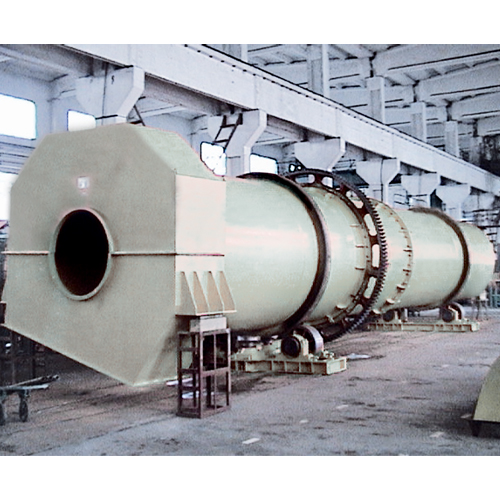

Spray Granulator
Description:
This spray granulator is a new type of granulation and drying equipment and especially suitable for production process of ammonium phosphate composite fertilizer, sulphur-based NPK compound fertilizer, and organic black liquid of monosodium glutamate factory and paper mill. And this spray granulator is an integration of granulation, drying, internal grading, and internal feeding, and features high granulating rate, less outside feeding, low comprehensive power consumption, etc.Technical Parameters:
| Type | HJL3.0 | HJL4.25 | HJL4.5 | HJL4.75 | |
| Size (cylinder dia.×cylinder length) (mm) | Φ3.0×12 | Φ4.25×16 | Φ4.5×16 | Φ4.75×18 | |
| Productivity (t/h) | 5-6 | 8-10 | 11-14 | 16-20 | |
| Rotary speed (r/min) | 5 | 4.3 | 4 | 4 | |
| Inclination (°) | 1 | 1 | 1.5 | 1.5 | |
| Operation temperature (℃) | inlet | 400-500 | 500-600 | 550-650 | 550-650 |
| outlet | 80-90 | 80-95 | 95-110 | 95-110 | |
| Filling Coefficient (%) | 15/granulating zone 13/drying zone | ||||
| Motor power (KW) | 75 | 132 | 220 | 315 | |
| Overall dimensions (mm) | 14400×3700×4290 | 19000×5700×6100 | 19300×6000×6300 | 2180×6500×6800 | |
