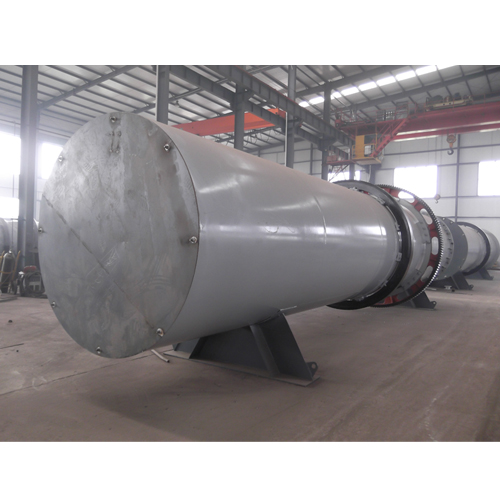

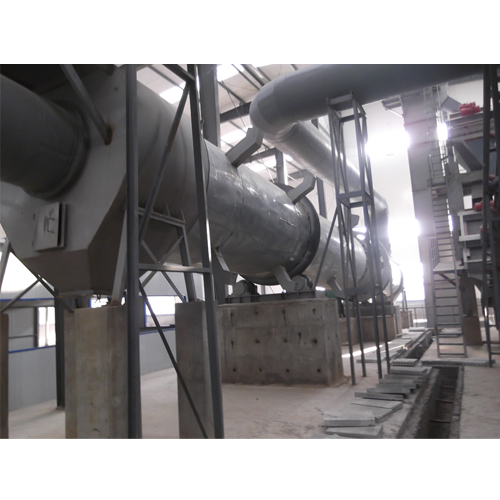

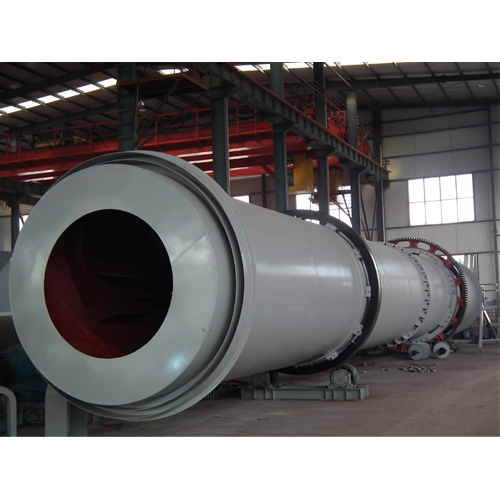

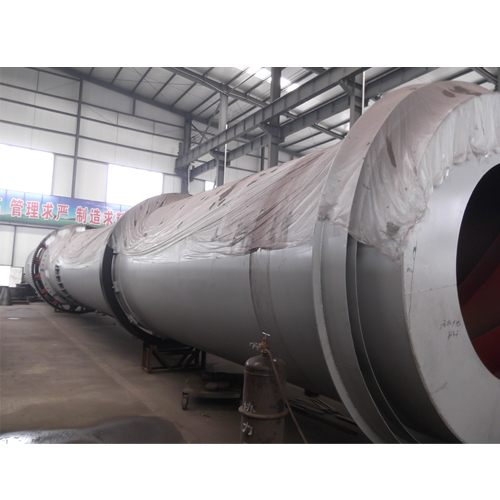

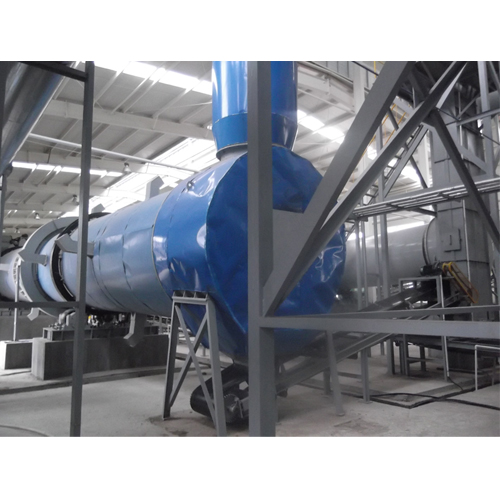

Rotary Dryer
Description:
This rotary dryer, also known as drum dryer, is specially developed for the drying of compound and mixed fertilizers and pre-drying of organic fertilizer. It is designed with multi-angle lifting shovelling plates to better handle materials of different features, so its materials can be evenly distributed into a larger heated area to get a better drying effect.This rotary dryer has advantages of humanized compact structure, high adaptability, good stability and low power consumption.
Technical Parameters:
| Type | Size(cylinder dia.×cylinder length) | Productivity (t/h) | Rotary speed (r/min) | Inclination (°) | Intake air temperature(℃) | Discharging moisture (%) | Motor | Overall size (mm)(L×W×H) | |
| Type | Power(kw) | ||||||||
| HGZ1210 | Φ1.2×10 | 1-2 | 4 | 1.5-2.5 | 80-350 | 1-4 | Y160M-6 | 7.5 | 12500×2000×2400 |
| HGZ1514 | Φ1.5×14 | 3-4 | 4 | Y180L-6 | 15 | 15440×2375×3110 | |||
| HGZ1818 | Φ1.8×18 | 5-6 | 4 | Y200L2-6 | 22 | 19600×3200×3400 | |||
| HGZ2020 | Φ2.0×20 | 8-10 | 4 | Y225M-6 | 30 | 21750×2820×3445 | |||
| HGZ2222 | Φ2.2×22 | 10-14 | 4 | Y280S-6 | 45 | 24300×3380×4410 | |||
| HGZ2424 | Φ2.4×24 | 14-16 | 4 | Y280M-6 | 55 | 26000×3430×4200 | |||
| HGZ2626 | Φ2.6×26 | 16-20 | 3 | Y280M-6 | 75 | 27500×3400×4400 | |||
| HGZ2828 | Φ2.8×28 | 20-24 | 3 | Y315S-6 | 90 | 30800×4200×4550 | |||
| HGZ3030 | Φ3.0×30 | 24-30 | 3 | Y315L2-6 | 132 | 33000×4250×5000 | |||
| HGZ3530 | Φ3.5×30 | 30-35 | 3.4 | Y335M2-6 | 185 | 33000×4800×5900 | |||
| HGZ3830 | Φ3.8×30 | 35-40 | 3.4 | Y355L1-6 | 220 | 34000×5200×6640 | |||
