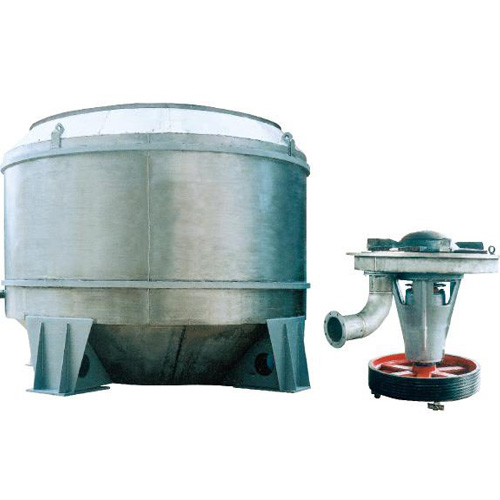

Hydrapulper
Description:
This hydrapulper is mainly used to break pulp sheet, broke and wastepaper.An energy-saving P.S.vokes rotor is equipped to strengthen the effectiveness of hydraulic circulation and fiber separation. This hydrapulper can perform continuous breaking with a lower power consumption.
Main Technical Parameters:
| Type | Nominal volume (m3) | Productivity (t/d) | Motor power (kw) | Overall dimensions(L×W×H) (mm) | ||||
| ONP&LOCC | AOCC | Chemical Wood Pulp | ||||||
| Φ6-Φ10 | Φ10-Φ16 | Φ6-Φ10 | Φ10-Φ16 | Intermittent | ||||
| ZDS23 | 5 | 25-35 | 35-50 | 15-25 | 25-35 | 13-18 | 55 | 4030×2500×3100 |
| ZDS24 | 10 | 45-60 | 60-80 | 30-40 | 40-50 | 25-30 | 110 | 5000×3100×3750 |
| ZDS25 | 15 | 65-80 | 80-100 | 45-60 | 60-75 | 40-50 | 160 | 5300×3600×4350 |
| ZDS26 | 20 | 85-100 | 100-130 | 60-75 | 75-90 | 50-60 | 185 | 5400×3800×4600 |
| ZDS27 | 25 | 110-130 | 130-150 | 80-95 | 95-110 | 65-85 | 220 | 5700×4200×4700 |
| ZDS28 | 30 | 130-150 | 150-170 | 95-110 | 110-130 | 80-100 | 250 | 6300×4310×4760 |
| ZDS29 | 35 | 150-170 | 170-190 | 110-125 | 125-150 | 95-120 | 280 | 6670×4750×5200 |
| ZDS30 | 40 | 170-190 | 190-210 | 125-140 | 140-160 | 110-135 | 315 | 5150×5000×5800 |
| ZDS31 | 45 | 190-220 | 220-250 | 140-160 | 160-180 | 125-150 | 355 | 5450×5270×6000 |
| ZDS32 | 50 | 220-250 | 250-280 | 160-190 | 190-220 | 140-170 | 400 | 6100×5520×6200 |
