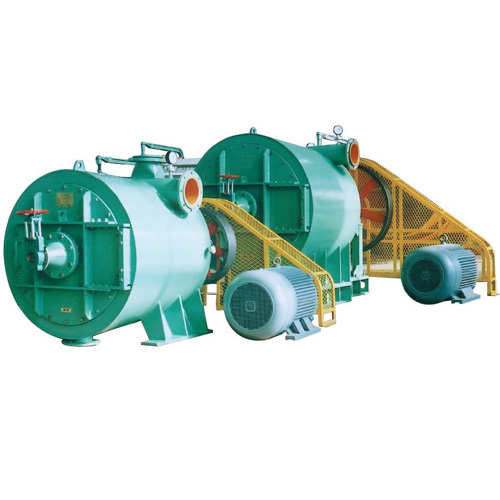

Fiber Separator


This fiber separator is specially used in the further breaking of wastepaper pulp as well as the separating of light and heavy impurities from wastepaper pulp.
Unique impeller and conical shell of this fiber separator make it more effective to separate fiber, as well as to remove the flocculation of light and heavy impurities.
When working together with pulper, this fiber separating machine can protect impurities from being broken, thereby reducing the burden of subsequent screening equipment. Meanwhile, the meshes of hydrapulper can enlarged to increase the productivity of hydrapulper.

Main Technical Parameters:

Type ZDF22 ZDF23 ZDF24 ZDF25 ZDF26
Diameter of impeller (mm) Φ520 Φ720 Φ980 Φ1100 Φ1250
Consistency of feeding pulp (%) 2.5-4.0
Pressure of feeding pulp (mpa) 0.15-0.25
Productivity ONP&LOCC Φ2.5-Φ4

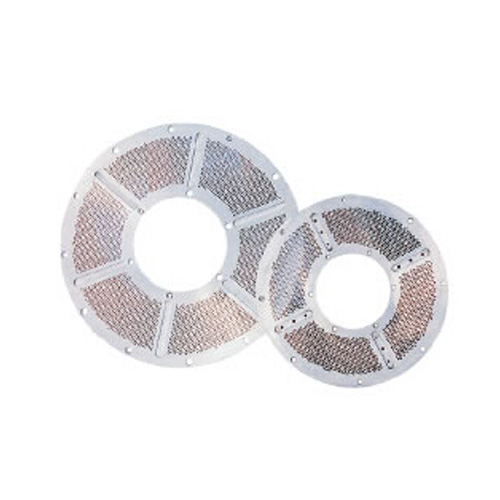

Diameter of plate hole
45-65 75-100 130-180 155-200 190-240
Diameter of plate hole
65-85 100-130 180-230 220-270 260-300
AOCC Φ2.5-Φ4
Diameter of plate hole
35-55 60-90 105-165 125-200 145-200
Diameter of plate hole
55-75 90-120 165-210 200-250 240-280
Motor power (kw) 45 75 110 132 160
Overall size(L×W×H) (mm) 2220×2110×1800 2350×2460×2180 3020×2800×2520 3160×3120×2470 3400×3350×2600
