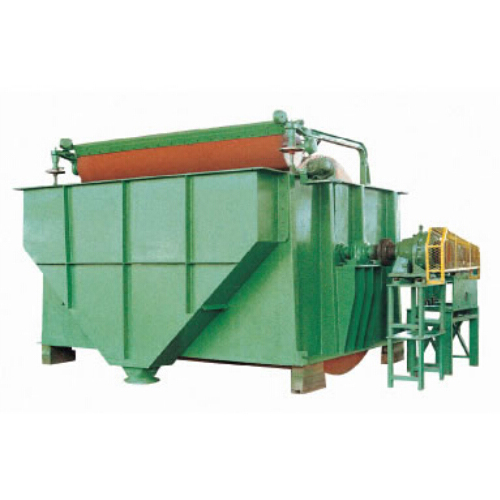

Gravity Cylinder Thickener
Description:
This gravity cylinder thickener is specially used to wash and thicken low-consistency pulp.Structure Features:
1. This gravity cylinder thickener features simple structure and good operation reliability. And its discharging pulp consistency and whitewater consistency are easy to control.2. The pulp layer made by this thickening equipment is loose and has a high thickness. Small impurities has strong penetration capacity. Pulp processed by this gravity cylinder thickener is much easier to be separated by washing machine from small impurities like ink particles, dust.
Main Technical Parameters:
| Type | Filtration area (m2) | Feeding pulp consistency (%) | discharging pulp consistency (%) | Productivity | Motor power (kw) | Overall dimensions (L×W×H) (mm) | |||
| Rice-wheat-straw pulp (t/d) | Mixed waste paper (t/d) | Tailing pulp(t/d) | Chemical wood pulp (t/d) | ||||||
| ZNW21 | 5 | 0.5~1 | 4~6 | 5~8 | 8~10 | 10~12 | 15~18 | 4 | 2925×2780×2400 |
| ZNW21 | 10 | 10~15 | 15~20 | 20~25 | 30~35 | 5.5 | 4196×2930×2400 | ||
| ZNW21 | 15 | 15~22 | 22~30 | 30~38 | 45~52 | 7.5 | 5510×2850×2400 | ||
| ZNW21 | 20 | 20~30 | 30~40 | 40~50 | 60~70 | 11 | 5350×3570×2820 | ||
| ZNW21 | 25 | 25~38 | 38~50 | 50~62 | 75~88 | 6210×3570×2820 | |||
| ZNW21 | 30 | 30~45 | 45~60 | 60~75 | 90~105 | 15 | 6715×4550×3500 | ||
| ZNW21 | 35 | 35~52 | 52~70 | 70~88 | 105~122 | 7370×4550×3500 | |||
