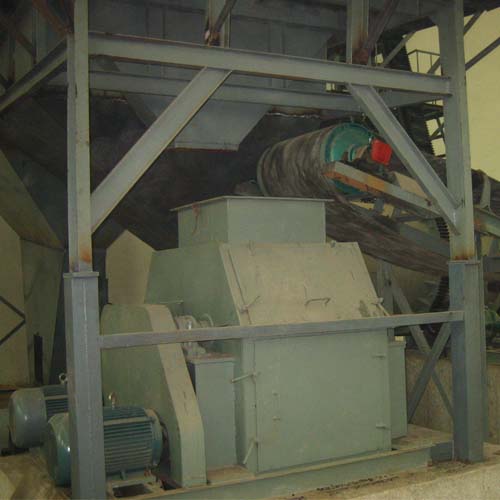

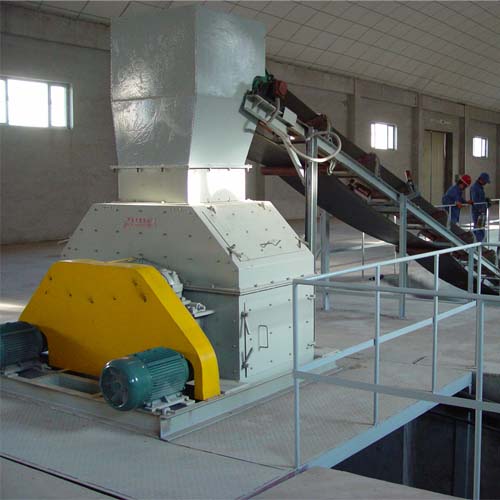

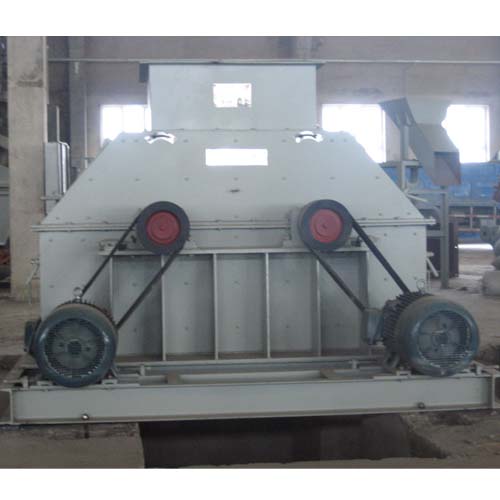

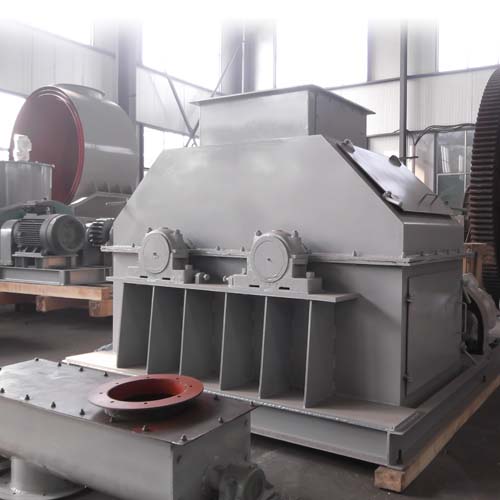

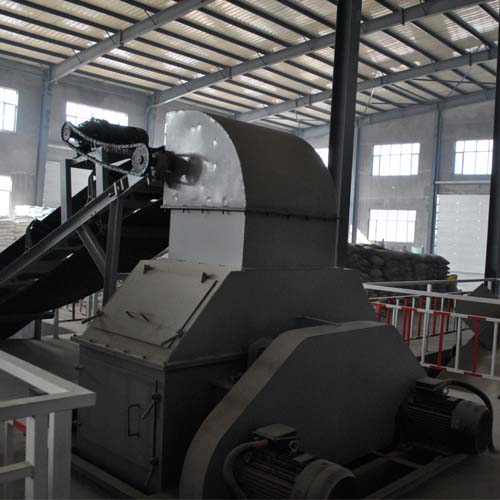

Horizontal Pulverizer
Description:
The horizontal pulverizer is specially used in pulverizing raw materials and reverted materials in phosphate compound fertilizer industry.The reasonably designed material inlet of this horizontal pulverizing equipment promises enough grinding time for materials, and enables materials to be fully pulverized. And its product granules are fine and even. Moreover, the inner liner of this horizontal pulverizer is made of stainless steel, which reduces the impact on the chassis as well as basic manufacturing costs.
Technical Parameters:
| Type | HWS50 | HWS60 | HWS70 | HWS80 | HWS100 | |
| Center Distance (mm) | 500 | 600 | 700 | 800 | 1000 | |
| Productivity (t/h) | 5-6 | 6-10 | 12-16 | 16-20 | 20-25 | |
| Feeding Granularity (mm) | ＜100 | ＜100 | ＜120 | ＜120 | ＜120 | |
| Discharging Granularity (mm) | ≤1mm Occupying 70%-90% | |||||
| Motor | Type | Y132M-4 | Y160M-4 | Y160L-4 | Y180L-4 | Y225ML-4 |
| Power(kw) | 7.5×2 | 11×2 | 15×2 | 22×2 | 45×2 | |
| Overall size (mm) (L×W×H) | 1754×1292×1115 | 1850×1650×1330 | 2150×2020×1600 | 2170×2320×1725 | 2620×2900×2150 | |
