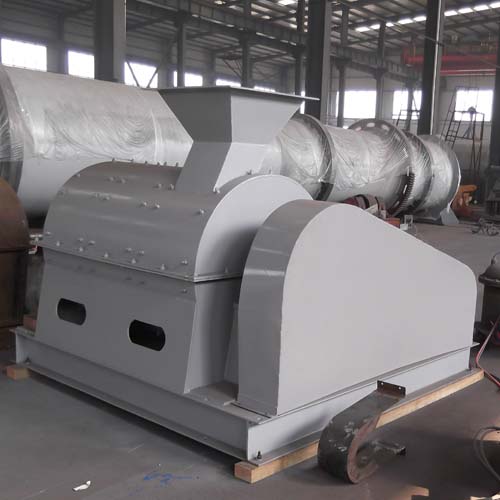

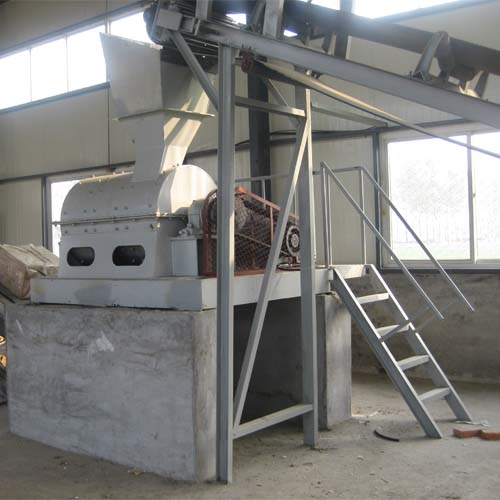

High-Moisture Material Pulverizer
Description:
This high-moisture material pulverizer is specially designed for the pulverizing of fermented materials in organic fertilizer industry. Meanwhile, this pulverizing equipment can process a wide range of materials. For instance, this pulverizing equipment can directly used to grind different organic materials containing less than 40% moisture. Therefore, it is widely used in farms, paper mill, furtural plant, domestic waste treatment plant and so on. And its pulverizing rate is more than 95% on average.This high-moisture material pulverizer is designed with horizontal single-spindle multi-blade structure and there is a flow guiding device inside it, so materials can go in and out in axial-flow way. The spindle can drive the blades to rotate in high speed. When passing through the gap between blades and liner panel, materials can be impacted, crushed and grinded.
Technical Parameters:
| Type | HWGF70 | HWGF90 | |
| Cylinder dia. (mm) | Φ700 | Φ900 | |
| Moisture of feeding materials | ＜40 | ＜40 | |
| Feeding granularity (mm) | ＜20 | ＜40 | |
| Feeding strength (kgf/cm2) | 0.5-2.0 | 0.5-2.0 | |
| Discharging granularity (mm) | ≤1mm occupying 70%-90% | ||
| Productivity (t/h) | 2-3 | 3-5 | |
| Rotor Speed(rpm) | 1390 | 1060 | |
| Motor | Type | Y225S-4 | Y250M-4 |
| Power(KW) | 37 | 55 | |
| Overall size(mm) (L×W×H) | 1870×1600×1420 | 2110×2030×1630 | |
