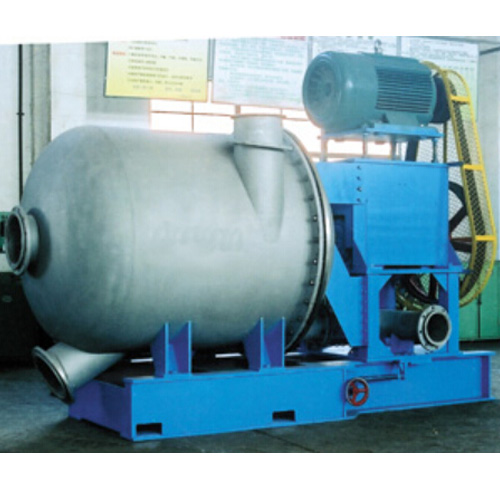

Hydrapurge I
Description:
This hydrapurge I is specially used in separating impurities or contaminants in pulp from high consistency hydrapulper in the wastepaper deinking process.The low-friction rotor of this hydrapurge I protects impurities from further breaking, and its optimized shell structure improves its impurity collection capacity.
Main Technical Parameters:
| Type | ZSX1 | ZSX2 | ZSX3 |
| Nominal volume (m3) | 1 | 2.5 | 5 |
| Processing consistency (%) | 4-5 | ||
| Flow rate (L/min) | 8000-13000 | 15000-20000 | 22000-30000 |
| Motor power (kw) | 37 | 75 | 160 |
| Overall size (L×W×H) (mm) | 4540×1820×1970 | 5540×2330×2650 | 6500×3350×3800 |
