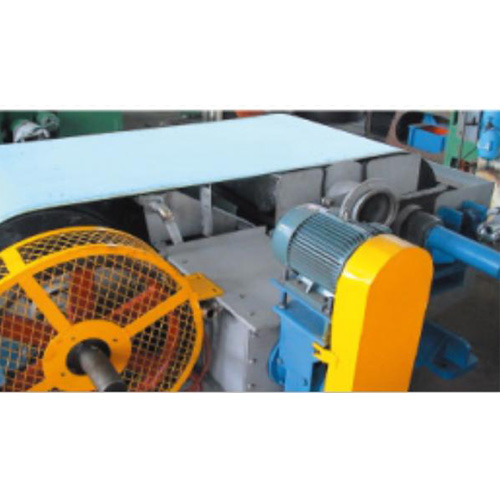

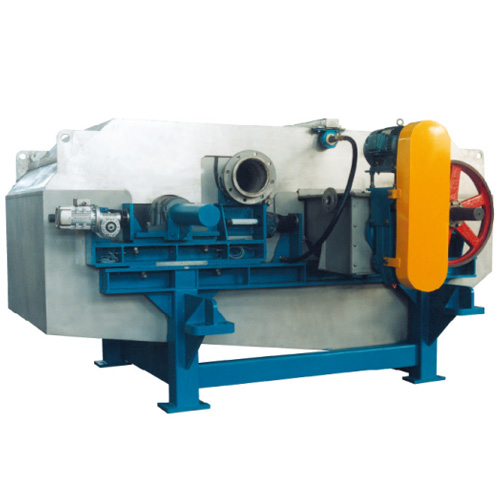

High-speed Washer
Description:
This high-speed washer is mainly used to wash deinked pulp in waste paper treatment system.Structure Features:
1. This high speed washing equipment can quickly dewater paper pulp to obtain high-consistency pulp, which is conductive to further consistency treatment.2. Due to its high removal rate of ink particles and dust, this high speed washer produces higher-whiteness pulp.
3. The structure of this high-speed washer is compact and its matching capacity is good.
Main Technical Parameters:
| Type | ZNG10 | ZNG15 | ZNG20 | ZNG25 | |
| Processing width (mm) | 1000 | 1500 | 2000 | 2500 | |
| Feeding pulp consistency (%) | 0.8-1.5 | ||||
| Discharging pulp consistency (%) | 8-15 | ||||
| Productivity | MOW (t/d) (US waste 37#) | 40-40 | 55-100 | 70-130 | 100-150 |
| ONP (t/d) | 30-50 | 40-70 | 50-90 | 60-110 | |
| Dust removal rate (%) | ≥90 | ||||
| Power of main motor (kw) | 30 | 37 | 55 | 75 | |
| Motor power of crew conveyor (kw) | 5.5 | 6 | 7.5 | 7.5 | |
| Overall dimensions (L×W×H) (mm) | 4620×2700×2080 | 4670×3090×2080 | 4720×3520×2080 | 4970×4070×2080 | |
Dust Removal Rate Comparison of Different Thickeners and Washers:
| Equipment name | Feeding pulp consistency (%) | Qualified pulp consistency (%) | Dust content (%) | Dewatering rate (%) | Dust removal rate (%) | ||
| Feeding pulp | Qualified pulp | White water | |||||
| Inclined screen | 0.9 | 3.8 | 8 | 3.8 | 33.8 | 80.0 | 66.7 |
| Inclined screw | 4.5 | 14 | 16 | 8.7 | 31.5 | 78.1 | 61.2 |
| Pressing screw | 12 | 29.2 | 8 | 8.1 | 62.5 | 51.6 | 19.6 |
| High-speed washer | 1.6 | 11.5 | 17 | 1.2 | 58.0 | 94.8 | 93.5 |
