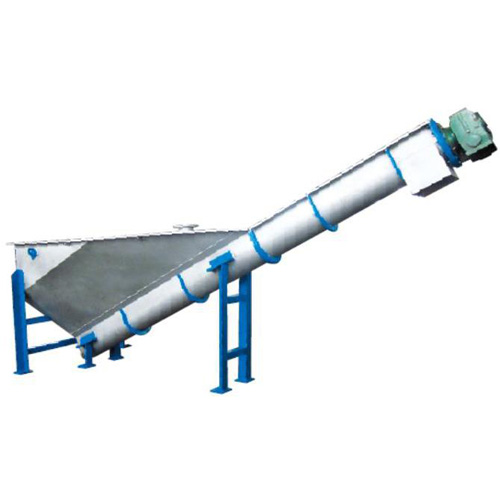

Sealing Screw Conveyor


When conveying sludge to a dryer, this sealing screw conveyor can seal the feeding inlet of dryer to isolate it from outside air. This sealing screw conveyor is especially used in pulp and paper industry.

Main Technical Parameters of HLX150-HLX500 Sealing Screw Conveyor:

Type HLX150 HLX300 HLX500
Screw dia. (mm) 145 290 490
Conveying capacity (t/h) 0.6-1.3 8-10 15-30
Screw rate (r/min) 35 60 90
Power of motor (kw) 1.5 2.2 4
