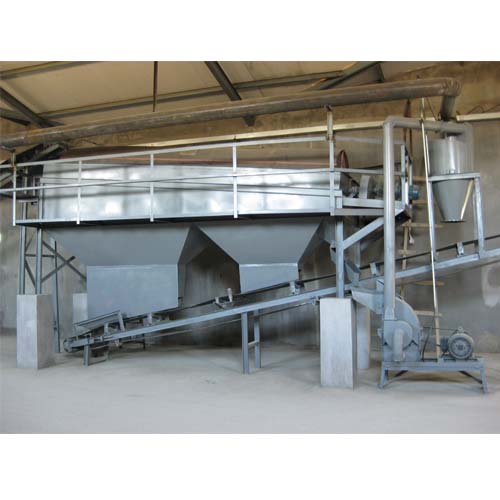

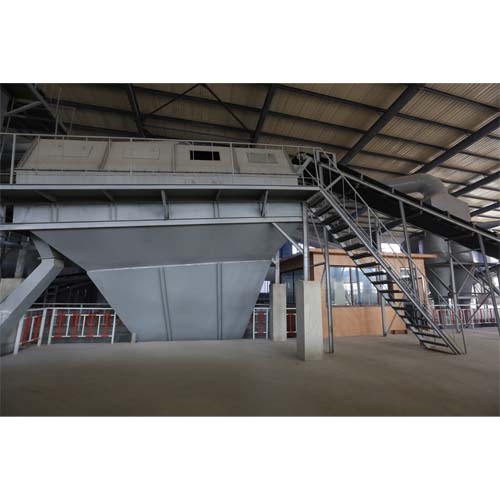

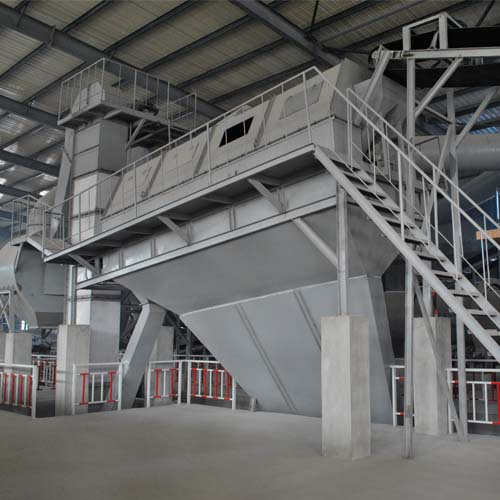

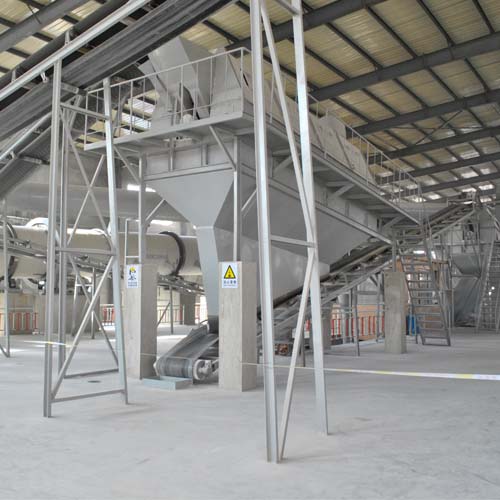

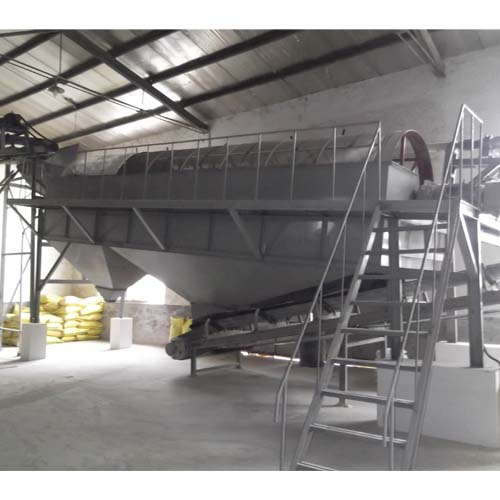

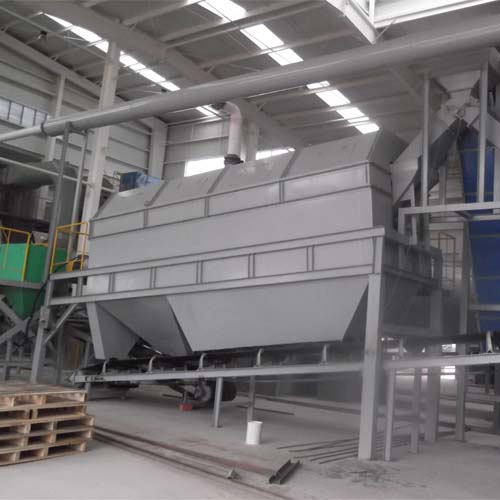

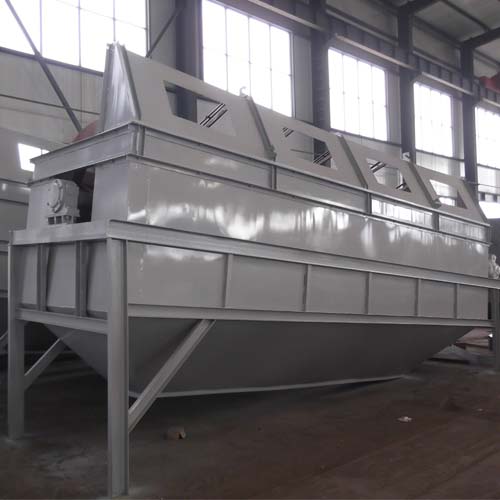

Rotary Grading Sieve
Description:
This rotary grading sieve is mainly used in the grading sieve of compound fertilizer and mixed fertilizer.The mesh numbers of sieve meshwork are different from the feeding side to the discharging side so as to make the grading sieve of compound fertilizer and mixed fertilizer possible. And it has two different sieve cages: round and cone. This rotary grading sieve has advantages in high productivity, good sieving performance and easy operation.
Technical Parameters of HGS10-HGS24:
| Type | HGS10 | HGS12 | HGS15 | HGS18 | HGS20 | HGS22 |
| Size (cylinder dia.×cylinder length) (mm) | Φ1.0×4 | Φ1.2×5 | Φ1.5×6 | Φ1.8×6 | Φ2.0×6 | Φ2.2×8 |
| Rotary speed (r/min) | 17 | 17 | 17.3 | 15.5 | 15 | 10 |
| Productivity (t/h) | 6-8 | 8-10 | 8-12 | 12-14 | 14-18 | 18-30 |
| Power of geared motor (KW) | 3 | 4 | 5.5 | 11 | 15 | 15 |
| Overall size (mm) (L×W×H) | 6200×1780×2100 | 6500×1950×2200 | 7705×2280×1050 | 7900×2580×4160 | 8200×3200×4800 | 10375×2600×2800 |
