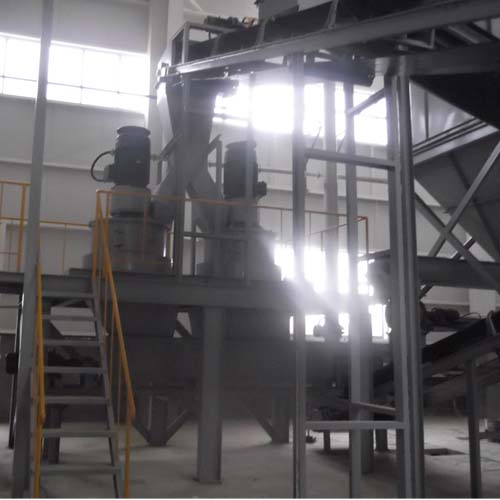

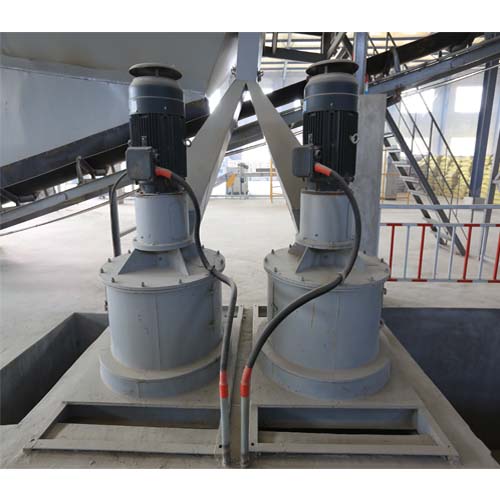

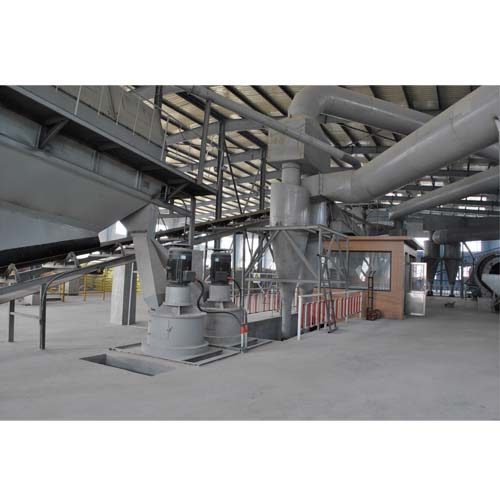

Vertical Pulverizer
Description:
The vertical pulverizer is mainly used in grinding raw materials and return materials, as well as crushing single super-phosphate fertilizer containing less than 14% moisture and less than 5% free acid.This vertical pulverizer is designed on basis of production process features of compound and mixed fertilizers. And this vertical pulverizing equipment has advantages in compact structure, stable operation, producing less adhesive materials, and easy cleaning.
Technical Parameters:
| Type | HLF60 | HLF80 | HLF100 | |
| Size (cylinder dia.×cylinder length) (mm) | Φ600×610 | Φ800×610 | Φ1000×610 | |
| Rotor dia. (mm) | Φ590 | Φ790 | Φ900 | |
| Productivity (t/h) | 2-3 | 3-4 | 4-6 | |
| Feeding Granularity (mm) | ＜50 | ＜60 | ＜80 | |
| Discharging Granularity (mm) | ≤1mm occupying70%-90% | |||
| Motor | Type | Y160M-4 | Y180M-4 | Y225M-6 |
| Power(KW) | 11 | 18.5 | 30 | |
| Overall dimensions (mm) (L×W×H) | 2000×660×1100 | 2000×950×1600 | 2000×1100×2130 | |
