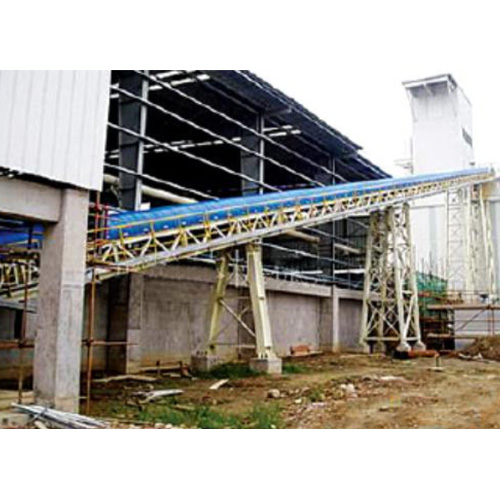

Belt Conveyor
Description:
This belt conveyor is used to convey sludge with a dryness ranging from 40% to 70% to or out of drying equipment in pulp and paper industry.Main Technical Parameters of B500-B1200 Belt Conveyor:
| Type | B500 | B650 | B800 | B1000 | B1200 | B1400 |
| Belt width (mm) | 500 | 600 | 800 | 1000 | 1200 | 1400 |
| Conveying capacity (m3/h) | 6-10 | 10-15 | 16-20 | 20-30 | 30-45 | 60-100 |
| Belt speed (m/s) | 0.5-1.2 | |||||
|
Convey slope (°) |
＜22 | |||||
