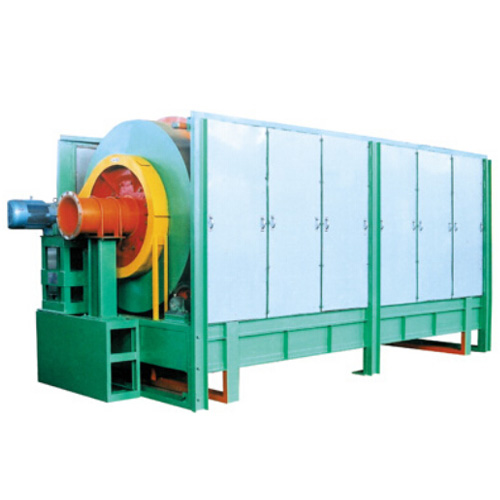

Drum Screen
Description:
This drum screen is mainly used in collecting coarse and big impurities or contaminants in wastepaper breaking system.Its optimized spiral blade and water spraying system promise high-purity impurities and less fiber loss. Meanwhile, this drum screen has high screening efficiency and good matching capacity.
Main Technical Parameters:
| Type | ZST1A | ZST3A | ZST4A |
| Diameter of screen drum (mm) | Φ1000 | Φ1500 | Φ2000 |
| Flow Rate (L/min) | 3000-5000 | 6000-8000 | 8000-10000 |
| Motor power (kw) | 4 | 5.5 | 11 |
| Overall dimensions (L×W×H) (mm) | 4040×1450×1820 | 5040×2000×2480 | 6750×2530×3040 |
