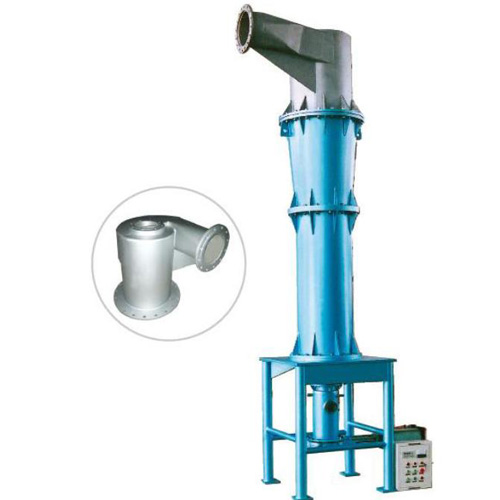

This H.C.cleaner is mainly utilized to remove various heavy impurities in paper pulp.
The optimized pulp feeding chamber and double-cone structure of this cleaning equipment produce strong vortex and obvious low pressure area, making it easier to completely separate good pulp from impurities. Ceramic cone body extends the service life of inner cone.

Main Technical Parameters:

Type ZSC53 ZSC54 ZSC55 ZSC56 ZSC57 ZSC58
Flow rate (L/min) 900-1400 1800-2600 3000-4500 4500-5800 5800-7500 8000-1200
consistency of feeding pulp (%) High consistency: 2-5% Medium consistency: 1-2.5%
Pressure of feeding pulp (Mpa) 0.2-0.5
Dreg-discharging mode Automatically and manually
Overall dimensions (L×W×H) (mm) 3275×1435 3375×1430 3710×1430 4060×1500 4480×1700 5200×2050
