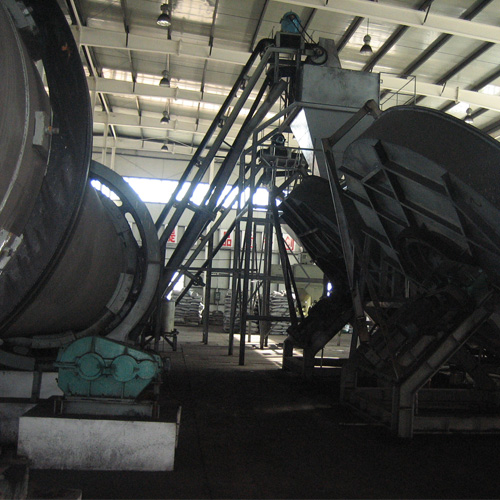

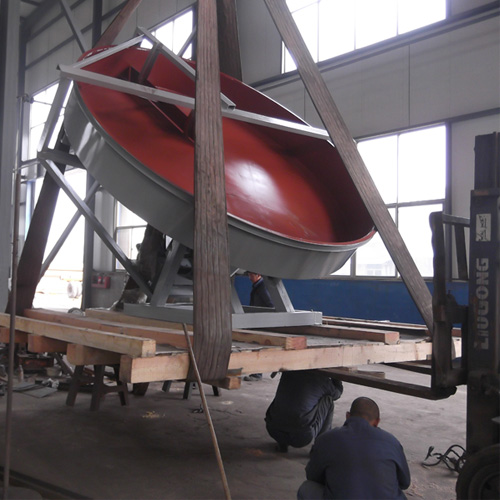

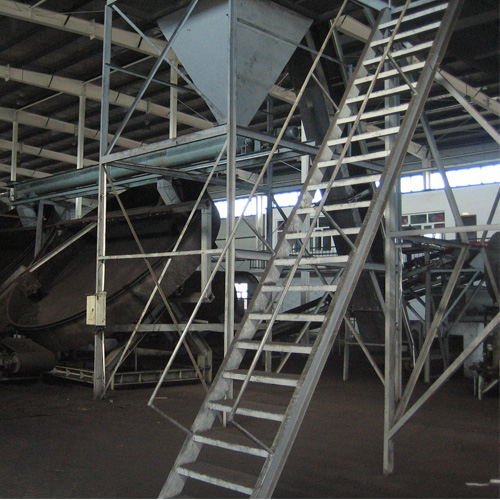

Disc Granulator

Description:

Disc granulator is designed to granulate fertilizers into special shapes of the same size. And it’s mainly used the small-scale production of medium- and low-consistency composite fertilizer, organic fertilizer and inorganic fertilizer.

Features:

1. The balling inclination angle of this disc granulator is adjustable from 40°to 60°. Moreover, it is very easy to maintain and operate; its balling rate is very high and its final granules are even and round.
2.This granulating equipment is specially suitable for producing biological fertilizer and fertilizer whose organic substance exceeds 40%.

Technical Parameters:

Type HCL22 HCL25 HCL28 HCL32 HCL40 HCL45
Disc diameter (mm) Φ2200 Φ2500 Φ2800 Φ23200 Φ4000 Φ4500
Productivity (t/h) 1-1.5 1.5-2 2-2.5 2.5-3 3-4 4-5
Rotary speed of main axle (r/min) 18 16.2 14.2 13.5 10.2 10
Disc inclination ( °) 40-60
Balling (%) ≥85
Motor Type Y132S-4 Y132M-4 Y160M-4 Y160M-4 Y160L-4 Y180L-4
Power(kw) 5.5 7.5 11 11 15 22
Overall dimensions (mm) (L×W×H) 2530×2100×2800 2630×2600×2800 2850×3020×3110 3600×3030×3310 4500×3300×4000 5100×3700×4400
