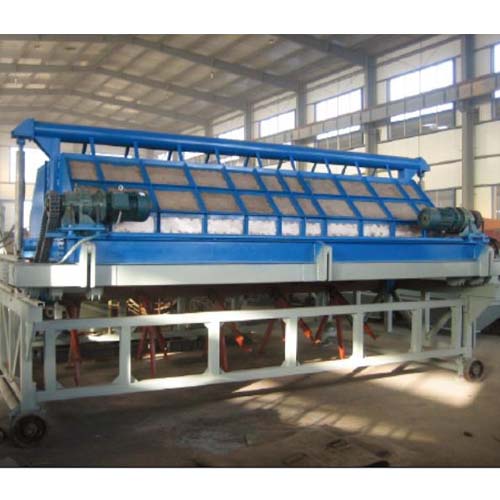

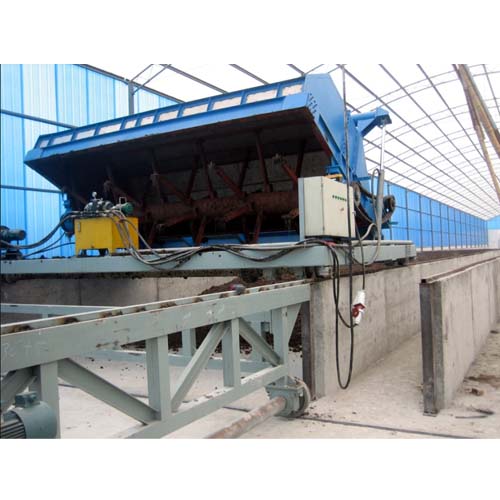

Tooth-rake Rolling And Piling Machine
Description:
Huayi is a professional manufacturer and supplier of tooth-rake rolling and piling machine in China. And our rolling and piling equipment gives you better use experience but at low price.The tooth-rake rolling and piling machine is specially developed to handle the pool-type rolling and piling process of various organic material fermentation, and it helps to greatly improve the speed of aerobic fermentation.
It is composed of host machine, track and transfer flatcar. And the host machine is in tooth rake structure and a traction device is used to drive it to move. A hydraulic control system is utilized to complete the rolling up and down of the rolling and piling machine.
Main Technical Parameters:
| Type | HCD60 | HCD80 | HCD120 |
| Width (mm) | 6000 | 8000 | 12000 |
| Productivity (m3/h) | 180-300 | 250-400 | 400-600 |
| Depth of rolling and piling (mm) | 1250 | ||
| Overall size (mm) (L×W×H) | 6600×4340×4300 | 8750×5500×4500 | 13000×6700×4800 |
