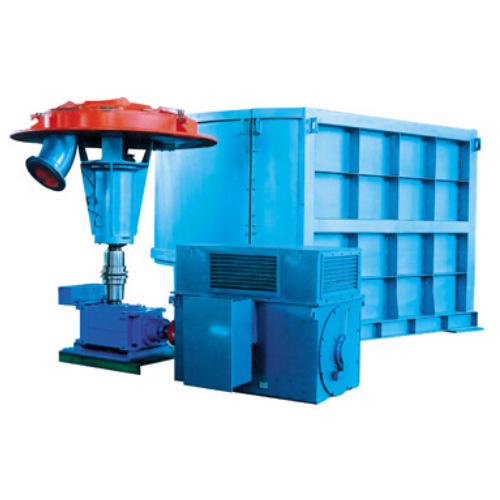

Type D Hydrapulper
Description:
This type D hydrapulper is mainly used to break wet broke, and it can break wet waste paper continuously with low power consumption.A special power-saving rotor is equipped to strengthen the performance of water circulation and fiber easing. The rotor is deviated from the tank center. The D shape of the tank enables pulp and rotor to contact faster and more frequently, so the productivity of this hydrapulper can be increased if enhancing the dynamic power and volume. The rotor and pulp discharging disc is higher than the surface of hydrapulper tank so that a low-pressure flow area can form around rotor to gather heavy impurities. In that way, the work life of rotor and screen plate can be extended.
Main Technical Parameters:
| Type | Nominal Volume (m3) | Processing consistency (%) | Productivity (t/d) | Motor power (kw) | Overall size (L×W×H) (mm) |
| ZDSD25 | 15 | 3-5 | 80-120 | 160 | 5080×4940×4200 |
| ZDSD26 | 20 | 140-180 | 185 | 5330×4130×4390 | |
| ZDSD27 | 25 | 180-230 | 220 | 5330×4400×4880 | |
| ZDSD28 | 30 | 230-280 | 280 | 6500×5100×4760 | |
| ZDSD29 | 35 | 270-320 | 315 | 5270×5290×5450 | |
| ZDSD30 | 40 | 300-370 | 355 | 5150×5600×5550 | |
| ZDSD31 | 45 | 350-400 | 400 | 6300×5830×6000 | |
| ZDSD32 | 50 | 400-450 | 450 | 6400×6050×6200 | |
| ZDSD33 | 60 | 480-550 | 560 | 7200×6250×6500 | |
| ZDSD34 | 70 | 550-630 | 630 | 7300×6700×6800 | |
| ZDSD35 | 80 | 600-700 | 710 | 8500×7000×6800 | |
| ZDSD37 | 100 | 800-900 | 900 | 10000×7650×7200 |
