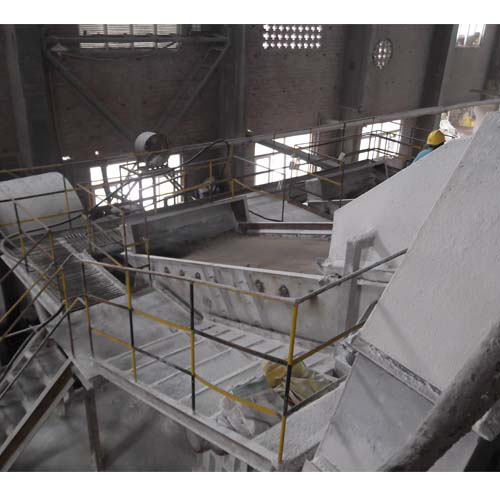

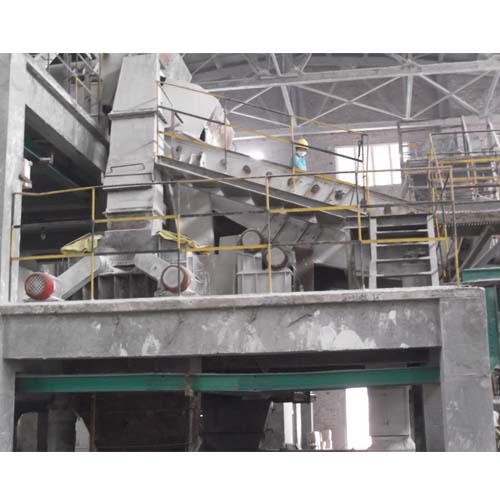

Linear Vibrating Screen
Description:
This linear vibrating screen is mainly used in the grading sieve of materials from industries of compound fertilizer, ammonium phostphate and mining. Its screening case is driven by eccentric block via flexible coupling to vibrate up and down, back and forth repeatedly.This linear vibrating screen equipment is characterized by reasonable power, high productivity, high screening efficiency, easy maintenance.
Main Technical Parameters:
| Type | HZS1540 | HZS1845 | HZS1860 |
| Nominal Area (m2) | 6.0 | 8.1 | 10.0 |
| Processing capacity (t/h) | 20-30 | 40-50 | 40-60 |
| Feeding moisture (%) | ＜4% (inorganic) | ||
| Inclination of screening body | 15 | ||
| Vibrating frequency | 970 | ||
| Double amplitude (mm) | 6-9 | ||
| Motor power (kw) | 5.5kw×2 sets | 5.5kw×2sets | 11kw×2sets |
|
Overall size (mm) (L×W×H) |
4210×2600×1865 | 4735×2950×2030 | 6170×3255×3000 |
