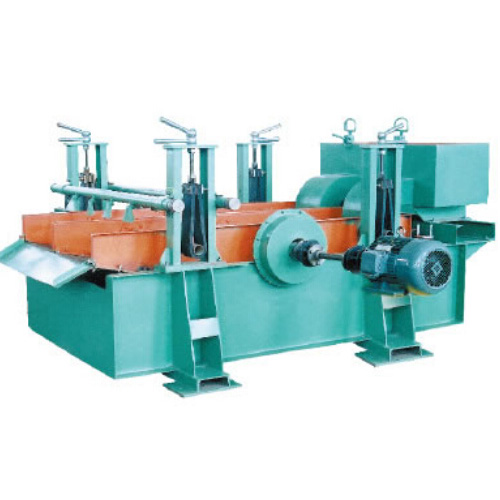

Vibrating Screen


This vibrating screen is mainly used to remove various impurities in paper pulp suspension.
Its vibrating device is made of special rubber, and its vibrating frame features good operation stability and smoothness, and low noise. Specially designed gas confinement chamber improves the self-cleaning capacity of the screen plate of this vibrating screen. Moreover, the mesh arrangement of screen plates in different areas is different, which is helpful for impurity removal and reduces fiber loss.

Main Technical Parameters:

Screen area (m2) 1 2 3 4
Feeding pulp consistency Screen mesh (%) 1.2-1.5
Screen slot (%) 0.5-0.8
Productivity Tailing part

Screen slot (t/d) 4.5-15 9-30 13.5-45 18-60
Screen mesh (t/d) 2-4.5 4-9 6-13.5 8-18
Main flow Screen slot (t/d) 7.5-25 15-50 22.5-75 30-100
Screen mesh (t/d) 3.5-7.5 7-15 10.5-22.5 14-30
Motor power (kw) 2 3 4 5.5
Overall dimensions(L×W×H) (mm) 2860×1950×1370 2760×2560×1440 2790×3220×1440 3445×3500×1440
