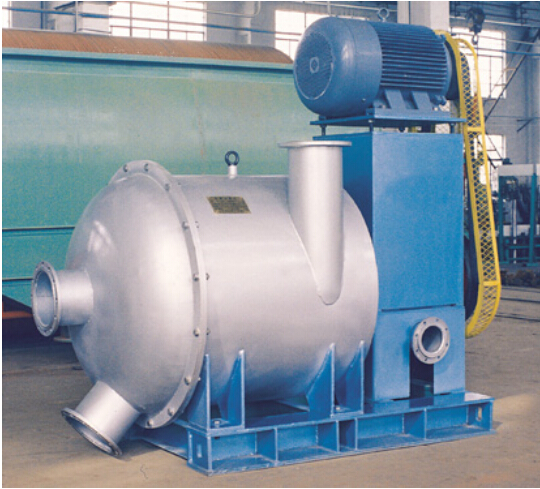

Hydrapurge II
Description:
This hydrapurge II is a kind of impurity separator mainly used in removing lightweight and heavy impurities or contaminants inside pulper. A specially designed rotor is used to prevent impurities from being broken during the impurity separating process, thereby reducing the sieving burden of screening system.Main Technical Parameters:
| Type | ZSF1 | ZSF2 | ZSF3 |
| Nominal volume (m3 ) | 1.2 | 3 | 5 |
| Processing consistency (%) | 4-5 | ||
| Processing capacity (t/d) | 35-45 | 60-80 | 100-130 |
| Motor power (kw) | 45/55 | 75 | 160 |
| Overall size(L×W×H) (mm) | 3430×2320×1630 | 3850×1760×2700 | 4620×2000×3090 |
