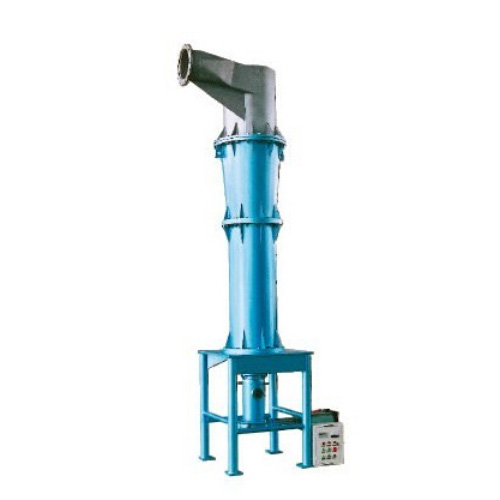

H.(M).C. Cleaner


This high (medium) consistency cleaner is mainly used to remove heavy impurities in paper pulp.
The optimized pulp-feeding chamber and double inner cone structure of this H.(M).C. cleaner produce strong vortex and obvious low pressure zone, which makes it easier to separate qualified pulp and impurities. The cone body is made of ceramic material to extend the service life of inner cone.

Main Technical Parameters:

Type ZSC53 ZSC54 ZSC55 ZSC56 ZSC57 ZSC58
Flow rate (t/d) 900-1400 1800-2600 3000-4500 4500-5800 5800-7500 8000-12000
Feeding pulp consistency (%) High consistency: 2-5% Medium consistency: 1-2.5%
Feeding pulp pressure (mpa) 0.2-0.5
Sediment discharging mode Automatic or Manual
Overall dimensions (L×W×H) (mm) 3275×1435 3375×1430 3710×1430 4060×1500 4480×1700 5200×2050
