Out flow pressure Fine screen
Description:
This out-flow pressure fine screen is specially used in the fine sieving of wastepaper pulp and unbleached paper pulp.The power-saving thin-wing rotors of this fine screen are accompanied by appropriate casing and drum screen to have good adaptability to different pulps. It screens pulp very gently and produces high-quality pulp. Moreover, the screening efficiency of this out-flow pressure fine screen is high and it consumes less power.
Main Technical Parameters:
| Type | ZSL31 | ZSL32 | ZSL33 | ZSL34 | ZSL35 | ZSL36 | ||
| Screening area (m2) | 0.3 | 0.5 | 1.2 | 2 | 3 | 4 | ||
| ZSL(J) | Screen | Mesh diameter (mm) | Φ1.2-Φ1.8 | |||||
| Screening consistency (%) | 0.8-2.0 | |||||||
| Flow rate (t/d) | 15-50 | 25-50 | 60-120 | 100-200 | 150-300 | 200-400 | ||
|
Slot Screen |
Mesh diameter (mm) | 0.15-0.45 | ||||||
| Screening consistency (%) | 0.8-2.0 | |||||||
| Flow rate (t/d) | 5-30 | 10-50 | 25-120 | 40-200 | 60-300 | 80-400 | ||
| Motor power (kw) | 15 |
|
45 | 75-90 | 110-132 | 132-160 | ||
| Overall dimensions (L×W×H) | 1450×725×1325 | 2065×1140×1710 | 2065×1190×1960 | 2570×1425×2300 | 3500×1650×2530 | 4300×1900×2750 | ||

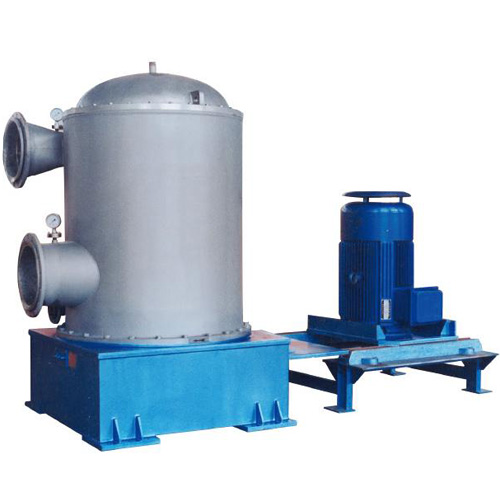

Out-flow Pressure Fine Screen
 |
 |
 |
 |
 |
 |
