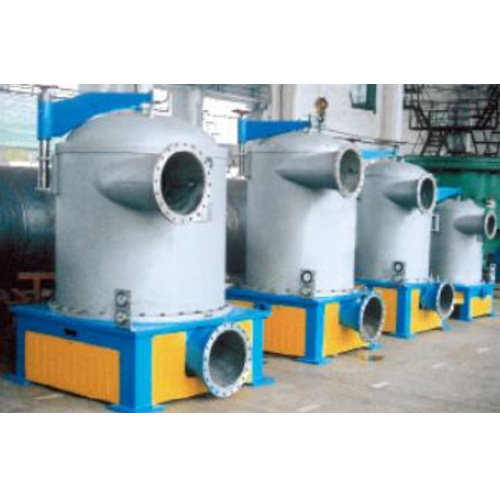

Inflow Pre-net Screen

Description:

This inflow pre-net screen is mainly utilized in the screening of low consistency pulp before the pulp enters paper machine. This screening equipment can effectively remove impurities and loose pulp group so as to improve paper quality.

Structure Features:

1. The inner cylinder of inflow pre-net screen is in an inverted cone shape. Pulp flows through screen slot at a constant speed.
2. The outlet of qualified pulp is large and pulse decreases very fast.
3. Heavy granule impurities flow around in the outer area of screen body, so the screen slot will not be blocked.
4. This inflow pre-net screen is of high productivity and low power consumption.

Main Technical Parameters

Type ZSL71 ZSL72 ZSL73 ZSL74 ZSL75 ZSL76
Screening area (m2) 0.8 1.5 2.5 3.5 4.5 6
Screening consistency (%) 0.3-0.8
Diameter of screen mesh (mm) Φ1.2-Φ2.0
Width of screen slot (mm) 0.25-0.55
Flow rate (L/S) 60-150 100-270 180-470 250-680 320-880 480-1280
Motor power (kw) 18.5/22 30/37 1 45/55 55/75 90/110
Overall dimensions(L×W×H) (mm) 2035×970×1720 2390×1250×2180 2780×1430×2680 2950×1780×2880 3410×2090×2820 4500×2605×3800
