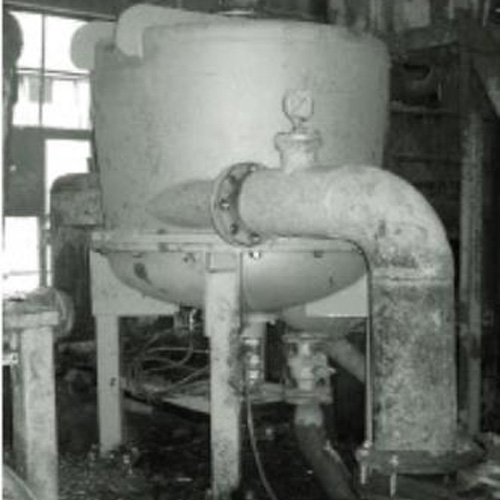

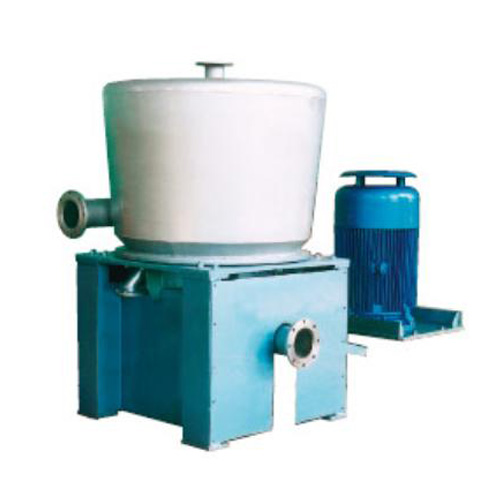

Float Purger
Description:
This float purger is distinctively utilized in removing lightweight residue and tailing pulp in the coarse screening process.The casing of this float purger is of inverted cone, and its concave top can form powerful vortex that produces a low pressure area on the top of casing to effectively collect and remove light impurities. Meanwhile, heavy impurities are sent to the outermost side of vortex by the centrifuge and then those heavy impurities sediment in the groove outside the screen plate. Later, those heavy impurities are removed continuously away from the float purger.
Main Technical Parameters of HYQ Series Float Purger:
| Type | HYQ75 | HYQ150 |
| Nominal volume (m3) | 0.8 | 2 |
| Feeding pulp pressure (Mpa) | 0.2-0.25 | |
| Processing consistency (%) | 0.5-2 | |
| Processing capacity (t/d) | 65-85 | 110-140 |
| Motor power (kw) | 55 | 110 |
| Overall dimensions (L×W×H) (mm) | 1825×910×1400 | 3100×1700×2570 |
Main Technical Parameters of ZSQ Series Float Purger:
| Type | ZSQ1 | ZSQ2 | ZSQ3 |
| Nominal volume (m3) | 0.4 | 0.8 | 2 |
| Feeding pulp pressure (Mpa) | 0.2-0.25 | ||
| Processing consistency (%) | 0.5-2 | ||
| Processing capacity (t/d) | 35-45 | 65-85 | 110-140 |
| Motor power (kw) | 30 | 55 | 110 |
| Overall dimensions (L×W×H) (mm) | 1825×910×1400 | 2600×1245×1955 | 3100×1700×2570 |
Float Purger
