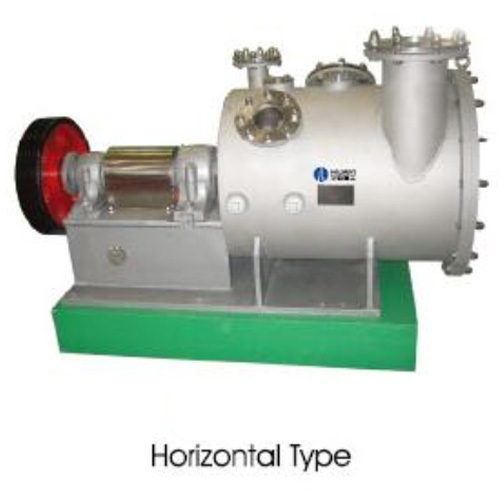

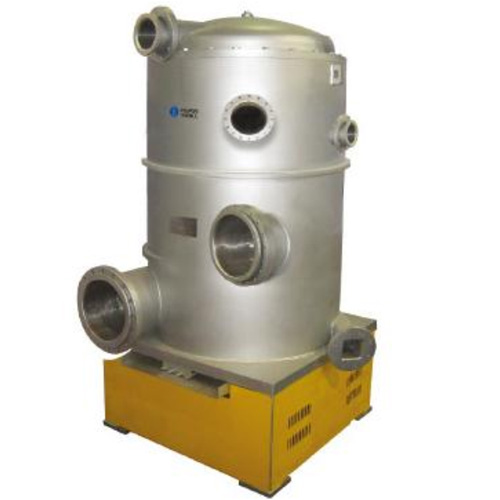

Fiber net Screen

Description:

This fiber net screen is specially utilized in processing and recycling tailing residues from fine screening system.

Structure Features:

1. The screen drum of this fiber net screen is divided into two parts, and different specification screen slots can be used according specific process requirements.
2. There is dilution water ring between the two screen drums, and by adding dilution water, pulp can be further purified. Moreover, the dilution water can prevent the pulp consistency from rising, which increases screening efficiency.
3. The use of enclosed rotors reduces pulp sticking and eases fiber bundle.

Main Technical Parameters:

Type	HYW3	HYW5	HYW100	HYW400
Screening area (m2)	0.3	0.6	1	1.5
Processing consistency (%)	0.8-1.5
Width of screen mesh (mm)	0.2, 0.25, 0.30
Feeding pulp pressure (mpa)	0.15, 0.25
Dilution water rate (L/min)	50-110	120-200	220-300	300-400
Flow rate (t/d)	10-25	25-40	45-65	65-85
Motor power (kw)	37	55	75	110
Overall dimensions(L×W×H) (mm)	1450×725×800	1750×850×980	2250×1900×1600	2400×1900×1800
