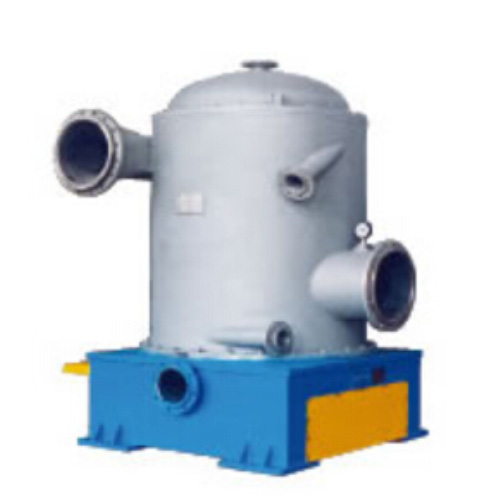

Knotter
Description:
This knotter is specially used to remove debris in paper pulp like knots, sand, gravels.The rotating screen drum structure with fixed wing panels produces strong centrifugal force to quickly remove debris in coarse pulp, like knots, sand, gravels, iron dregs. And the drum screen of this knotting machine is very difficult to be blocked. Moreover, the closed screening mode of this knotter can keep pulp at a high temperature.
Main Technical Parameters:
| Type | ZSJ1 | ZSJ2 | ZSJ3 |
| Diameter of screen drum (mm) | Φ450 | Φ600 | Φ800 |
| Screen consistency (%) | 1.5-3.5 | ||
| Diameter of screen mesh (mm) | Φ4、Φ4.5、Φ5、Φ6、Φ8、Φ10 | ||
| Productivity (t/d) | 40-70 | 80-200 | 150-360 |
| Motor power (kw) | 22 | 37 | 75 |
| Overall dimensions(L×W×H) (mm) | 1200×965×1430 | 2450×1330×2000 | 2900×1450×2400 |
