H.C. Hydrapulper

Description:

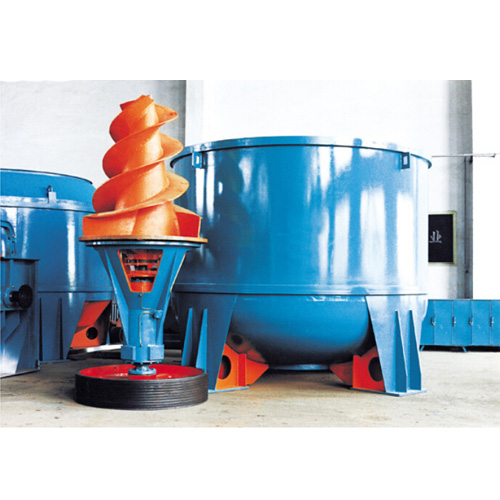

This H.C. hydrapulper is mainly applied to break waste paper under high consistency status in the deinking process.

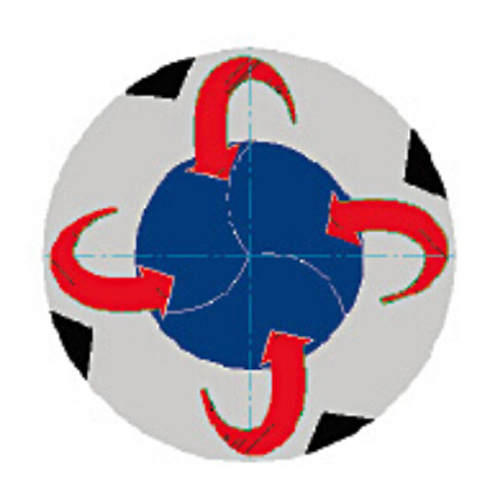

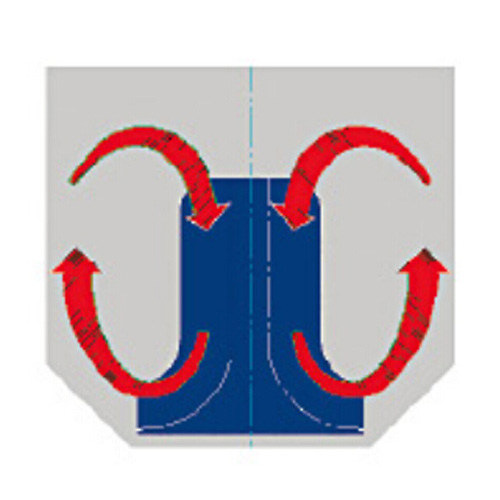

The equipment of spiral tower rotor makes gentle pulping under high consistency status possible for this hydrapulper, and protects impurities from being further broken when easing fiber and deinking. Moreover, the integrally cast rotor promises high wearability.

Main Technical Parameters:

Type Nominal volume (m3) Processing consistency (%) Productivity (t/d) Motor power (kw) Overall size(L×W×H) (mm)
ZDSH1 2.5 10-15% 7-10 55 3140×1930×2900
ZDSH2 5 20-25 110 3560×2450×3460
ZDSH3 8 30-35 185 5000×2900×3740
ZDSH4 10 40-50 220 5000×3150×4100
ZDSH5 15 60-70 310 6000×3650×4900
ZDSH6 20 80-100 400 6100×4100×4630
ZDSH7 25 130-185 450 6900×4450×4900
ZDSH8 30 160-225 500 7200×4950×5060
ZDSH9 35 185-260 560 7500×5100×5100
ZDSH10 40 210-295 630 7800×5250×5300
ZDSH11 45 235-330 710 8200×5550×5500
ZDSH12 50 260-360 800 8350×5700×6000
