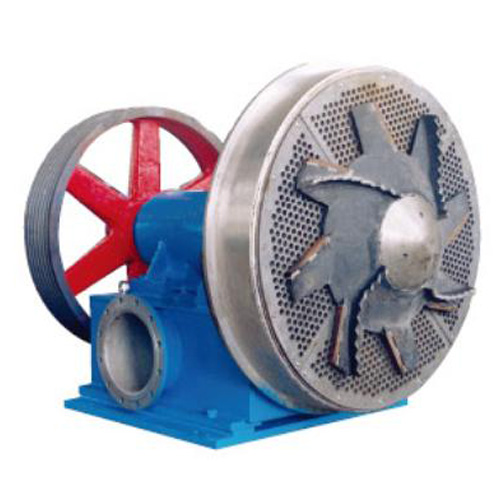

Press Pit/Dry broke pulper
Description:
This press pit/dry broke pulper is mainly used to break broke from the paper rolling and pressing processes of paper machine in pulp and paper industry.The sawtooth-shaped rotor of this press pit/dry broke pulper ensures good circulation and breaking of pulp. Meanwhile, this kind of rotor saves as much as 20% power when compared with that of traditional rotor. Moreover, this broke pulper is equipped with a pre-embedded steel rings to be directly connected with host machine.
Main Technical Parameters:
| Type | ZDSS1/ZDSS11 | ZDSS2/ZDSS12 | ZDSS3/ZDSS13 |
| Specifications (mm) | Φ850 | Φ1000 | Φ1250 |
| Pulp consistency (%) | 2.5-4.5 | ||
| Productivity of matching paper machine (t/d) | 90-120/100/230 | 180-250/250-320 | 300-550/350-550 |
| Motor power (kw) | 110/75 | 200/132 | 315/185 |
