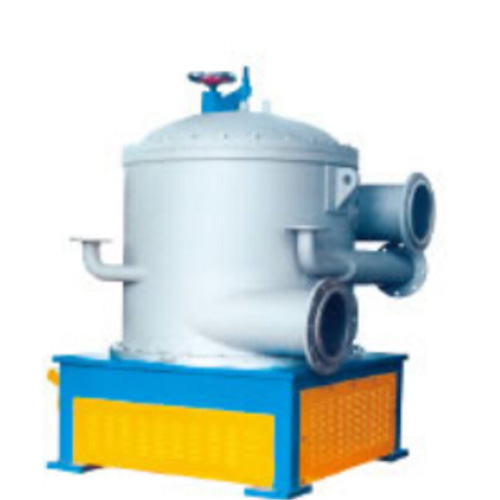

Out-flow Pressure Hot-screening
Description:
This out-flow pressure hot-screening machine, also known as hot-screening pressurized screen, is specially utilized for the hot screening of chemical pulp and semi-chemical pulp in pulp and paper industries.The high-speed rotating closed rotor of this out-flow pressure hot-screening machine avoids the disturbance of winding impurities and process high-consistency pulp. The weir tube structure allows pulp to enter this out-flow pressure hot-screening equipment in overflowing mode, which significantly decreases the wear and tear of heavy impurities to screen drum. Moreover, the double mechanical seal structure makes this hot-screening pressurized screen more appropriate to work at high temperature.
Main Technical Parameters:
| Type | ZSL32(R) | ZSL33(R) | ZSL34(R) | ZSL35(R) | ZSL36(R) | |
| Screening area (m2) | 0.5 | 1 | 2 | 3 | 4 | |
| Screen | Diameter of screen mesh (mm) | Φ1.2-Φ2.2 | ||||
| Screening consistency (%) | 1.5-2.5 | |||||
| Flow rate (t/d) | 35-75 | 80-180 | 140-300 | 200-450 | 280-600 | |
| Screen slot | Diameter of screen mesh (mm) | 0.15-0.35 | ||||
| Screening consistency (%) | 1.5-2.5 | |||||
| Flow rate (t/d) | 25-65 | 60-160 | 100-260 | 150-400 | 200-520 | |
| Motor power (kw) | 45 | 75 | 90-110 | 132-160 | 160-200 | |
| Overall dimensions(L×W×H) (mm) | 2065×1140×1650 | 2065×1190×1925 | 2570×1425×2300 | 3500×1650×25302 | 3715×1850×2785 | |
