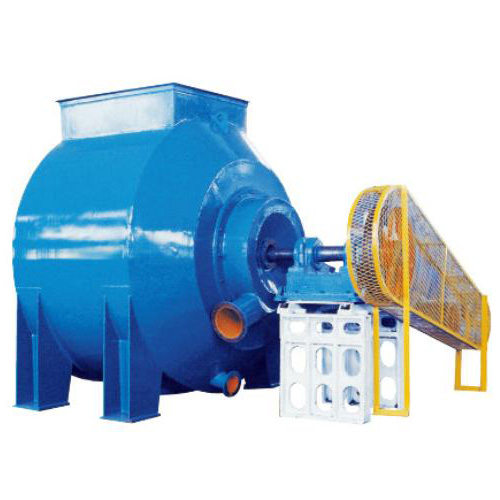

Horizontal Hydrapulper
Description:
Huayi Heavy Industry Company is a professional manufacturer and supplier of horizontal hydrapulper in China. We have two different types of hydrapulper for customers worldwide: horizontal and vertical hydrapulpers.The horizontal hydrapulper is mainly used in the breaking of pulp sheet, broke and wastepaper. And it can do continuous breaking with lower power consumption. Its hydraulic circulation and fiber separation capacities are greatly enhanced by its energy-saving rotor.
Main Technical Parameters:
| Type | Nominal Volume (m3) | Productivity m(t/d) | Motor power (kw) | Overall size(L×W×H) (mm) | |||
| ONP&LOCC | AOCC | ||||||
| Φ6-Φ10 | Φ10-Φ16 | Φ6-Φ10 | Φ10-Φ16 | ||||
| ZDS13 | 1 | 10-13 | 13-16 | 8-10 | 10-13 | 22 | 2990×1920×1600 |
| ZDS11 | 2.5 | 25-30 | 30-35 | 15-20 | 20-25 | 55 | 3800×2540×2000 |
| ZDS17 | 5 | 45-55 | 55-60 | 40-45 | 45-50 | 75 | 3350×2900×2450 |
| ZDS18 | 10 | 85-100 | 100-120 | 70-85 | 80-90 | 132 | 4070×3720×2450 |
| ZDS19 | 15 | 110-130 | 130-150 | 90-100 | 100-110 | 185 | 4470×4300×3100 |
| ZDS20 | 20 | 140-160 | 160-180 | 110-120 | 120-140 | 220 | 6700×4650×3510 |
| ZDS21 | 25 | 170-190 | 190-210 | 140-150 | 150-170 | 280 | 5400×6500×3780 |
| ZDS22 | 30 | 190-210 | 210-240 | 160-180 | 180-200 | 315 | 6000×7000×4050 |
