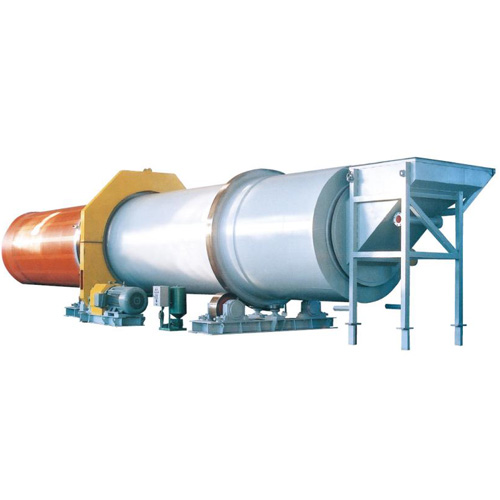

Drum Pulper
Description:
This drum pulper is mainly used in the continuous breaking and screening of wastepaper under high consistency status in order to remove coarse and big impurities.This kind of drum pulper can decompose fiber and do coarse screening of paper pulp without mincing impurities and generating smaller fiber. It can remove coarse and big impurities under high consistency status without fiber loss, such as wet-strength materials, plastics, fabric, stickies, sand, iron wire.
Main Technical Parameters:
| Type | ZDG2500 | ZDG2750 | ZDG3000 | ZDG3250 | ZDG3500 | ZDG3750 |
| Drum diameter (mm) | Φ2500 | Φ2750 | Φ3000 | Φ3250 | Φ3500 | Φ3750 |
| Drum length (mm) | 14500 | 17500 | 19500 | 2300 | 25500 | 30000 |
| Processing capacity (t/d) | 80-130 | 150-200 | 180-250 | 220-330 | 350-450 | 380-500 |
| Motor power (kw) | 132 | 200 | 280 | 355 | 500 | 560 |
| Overall size (L×W×H) (mm) | 16400×4650×5900 | 19700×6600×6200 | 21850×6880×6900 | 25200×7000×7000 | 2900×6700×7300 | 32560×7265×7840 |
Drum Pulper:
 |
 |
 |
