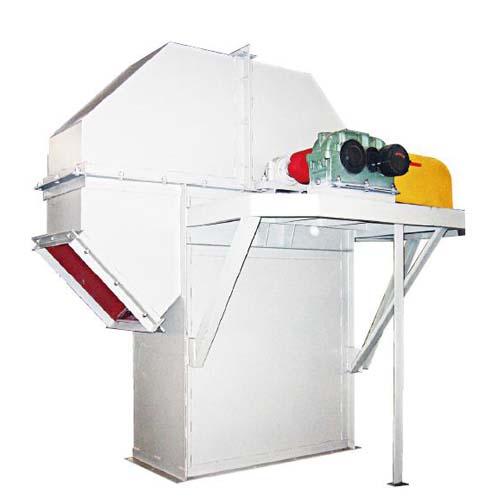

Bucket Elevator
Description:
This bucket elevator is widely used for the vertical conveying in different industries, such as chemical, mining, metallurgy, food and more.Bucket elevator manufactured by Huayi Company has advantages of small size, big conveying capacity, safe operation, good operation stability, good working environment.
Main Technical Parameters:
| Type | TH250 | TH315 | TH400 | TH500 | TH630 | |||||
| Bucket type | ZH | SH | ZH | SH | ZH | SH | ZH | SH | ZH | SH |
| Conveying capacity (m3/h) | 20 | 36 | 35 | 60 | 60 | 94 | 75 | 118 | 114 | 185 |
| Bucket width (mm) | 2 | 315 | 400 | 500 | 630 | |||||
| Running speed of bucket (m/s) | 1.2 | 1.4 | 1.5 | |||||||
| Motor Power (KW) | 4 | 7.5 | 11 | 15 | 18.5 | |||||
| Reducer type | ZQ250 | ZQ350 | ZQ400 | ZQ500 | ZQ500 | |||||
