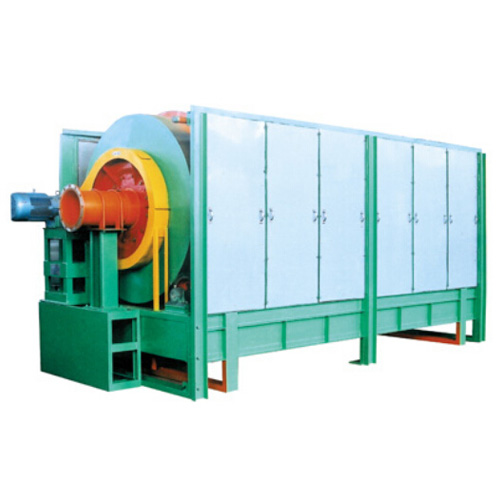

Drum Screen


This drum screen is mainly used in removing coarse and big impurities from waste water breaking system.
The optimized screw blades and water spraying system of this screening equipment ensures the high purity of impurities and less fiber loss. Besides, this drum screen has a high screening productivity and big matching capacity.

Main Technical Parameters:

Screening drum diameter (mm) Φ1000 Φ1500 Φ2000
Flow rate (L/min) 3000-5000 6000-8000 8000-10000
Motor power (kw) 4 5.5 11
Overall dimensions(L×W×H) (mm) 4040×1450×1820 5040×2000×2480 6750×2530×3040
