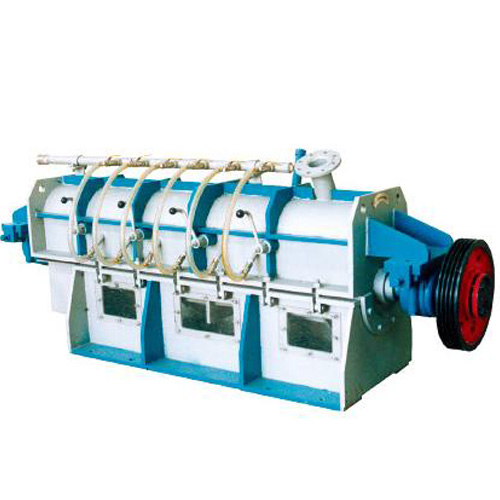

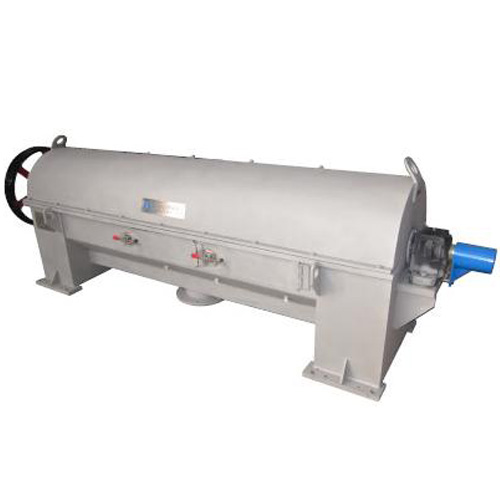

Reject Separator

Description:

This reject separator is specially used to handle the tailing rejects of coarse screening system in wastepaper processing system.

Features:

1. The high-speed rotating blades effectively break paper pieces. 2. Due to the throwing effect of shaft rotor and the washing action of water spraying device, fiber can be effectively recycled. 3. To get fiber-free tailing rejects, this reject separator is equipped with a multi-pole rotor, drum screen and internal rotor wing, and those rejects are very easy to transport and process. 4. This reject separating equipment works under enclosed status, causing no pollution to the surrounding environment.

Main Technical Parameters of HYZ Series Reject Separator:

Diameter (mm) Φ410
Feeding consistency (%) 1-3.5
Discharging reject consistency (%) 15-20
Productivity (t/d) 40-50
Matching power (kw) 37
Overall dimensions(L×W×H) (mm) 3800×2000×1200

Main Technical Parameters of ZSZ Series Reject Separator:

Type ZSZ1 ZSZ2
Diameter (mm) Φ280 Φ380
Feeding consistency (%) 1-3.5 1-3.5
Discharging reject consistency (%) 15-20 15-20
Productivity (t/d) 10-20 10-20
Matching power (kw) 37kw 55kw
Overall dimensions(L×W×H) (mm) 2610×1925×1010 3200×2020×1195

Reject Separator
