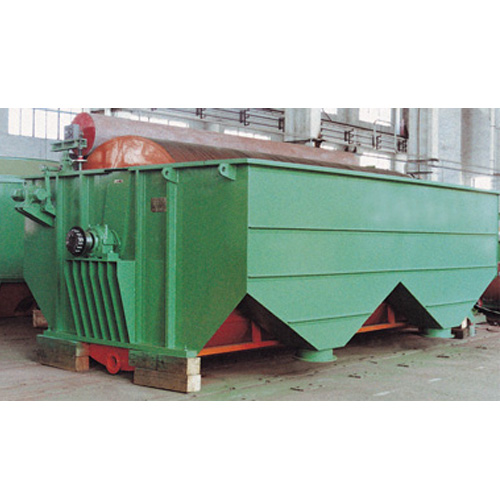

New-type Gravity Cylinder Thickener
Description:
This new-type gravity cylinder thickener is specially utilized in washing and thickening low-consistency pulp.Besides having all the features of normal gravity cylinder thickener, it has higher matching capacity, and its cylinder has higher rigidity.
Main Technical Parameters:
| Type | ZNW4025 | ZNW4525 | ZNW6030 | |
| Filtration area (m2) | 40 | 45 | 60 | |
| Feeding pulp consistency (%) | 0.5~1 | |||
| Discharging pulp consistency (%) | 4~6 | |||
| Productivity | Rice-wheat-straw pulp (t/d) | 10~60 | 45~67 | 60~90 |
| Mixed waste paper pulp(t/d) | 60~80 | 67~90 | 90~120 | |
| Tailing pulp (%) | 80~100 | 90~112 | 120~150 | |
| Chemical wood pulp (%) | 120~140 | 135~157 | 180~210 | |
| Motor power (kw) | 15 | 18.5 | 22 | |
| Overall dimensions (L×W×H) (mm) | 7565×4030×3095 | 8210×4030×3095 | 8950×4580×3560 | |
