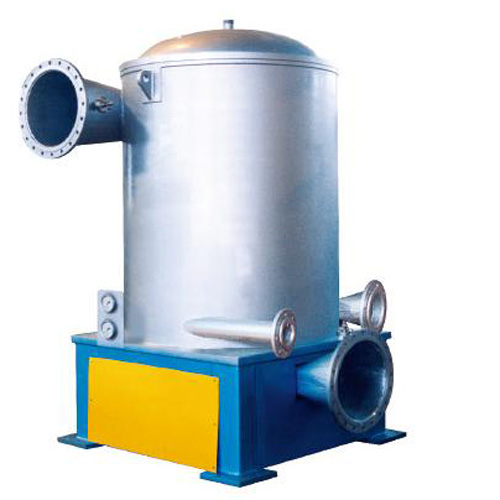

Inflow pressure Fine screen

Description:

This inflow pressure fine screen is specially utilized to remove small impurities like stickies, ink particles, dust existed in pulp of pulping and paper making industry so as to get high-quality paper.

Structure Features:

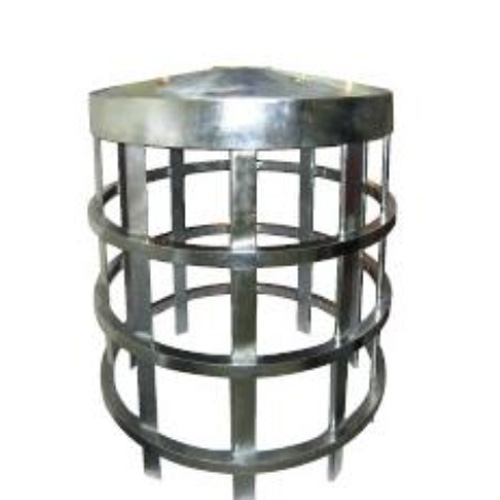

1. Due to centrifugal force of this inflow pressure fine screen, heavy impurities and fiber are quickly separated, causing small wear to drum screen.
2. The centrifugal force keeps impurities away from drum screen, so that those impurities cannot block the screen slots.
3. Fiber can pass through drum screen gently without the disturbance of impurities. The low pulse intensity when discharging pulp contributes to easy removal of plastic impurities.

Main Technical Parameters:

Type ZSL81 ZSL82 ZSL83 ZSL84 ZSL85 ZSL86
Screen area (m2) 0.8 1.5 3 3.5 4.5 6
Screen consistency (%) 0.8-2.0
Diameter of screen mesh (mm) Φ1.2-Φ1.8
Width of screen slot (mm) 0.10-0.25
Flow rate (L/S) 35-80 60-140 110-250 150-340 200-450 280-660
Motor power (kw) 30 45 55 75 90 132
Overall dimensions(L×W×H) (mm) 2035×970×1720 2390×1250×2180 2790×1430×2680 2950×1780×2880 3410×2090×2820 3825×2510×3520
