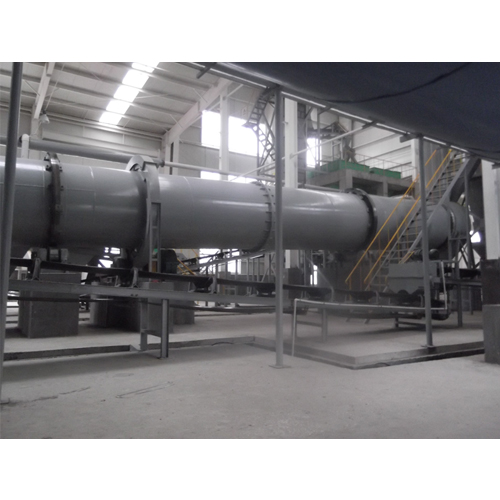

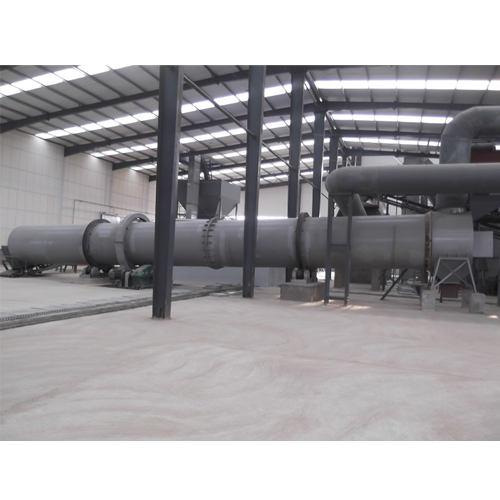

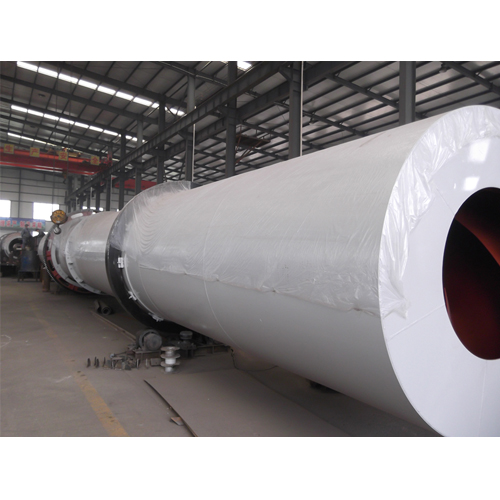

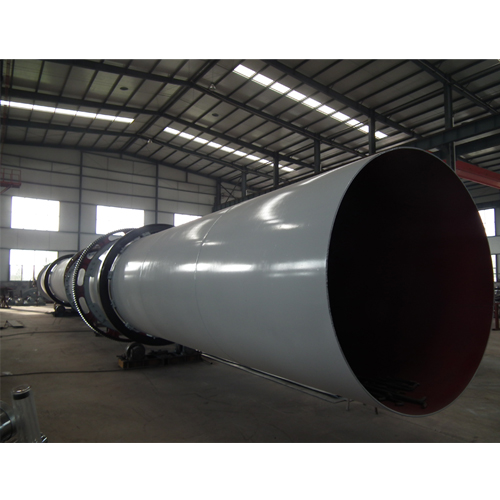

Rotary Cooler
Description:
This rotary cooler is specially used in quick cooling down of finished fertilizers and chemical materials. It can directly cool down high-temperature compound fertilizer to the normal temperature so that quick and timely packing is possible.Moreover, this countercurrent cooling design of this rotary cooling equipment contributes in reducing pollution, improving work environment. This rotary cooler has advantages in humanized structure, good operation stability, and high adaptability.
Technical Parameters:
| Type | Size (cylinder dia×cylinder length)(mm) | Productivity (t/h) | Rotating speed (r/min) | Inclination (°) | Motor | Overall dimensions (mm)(L×W×H) | |
| Type | Power(kw) | ||||||
| HLQ1210 | Φ1.2×10 | 3-5 | 5.2 | 2-2.5 | Y160L-6 | 7.5 | 10750×2025×2130 |
| HLQ1515 | Φ1.5×15 | 6-8 | 4.4 | Y180L-6 | 15 | 15750×2375×3110 | |
| HLQ1818 | Φ1.8×18 | 8-12 | 4.2 | Y200L2-6 | 22 | 19600×2630×3400 | |
| HLQ2020 | Φ2.0×20 | 12-16 | 4 | Y225M-6 | 30 | 20750×3380×4100 | |
| HLQ2220 | Φ2.2×20 | 18-22 | 4 | Y280S-6 | 45 | 22000×3380×4410 | |
| HLQ2420 | Φ2.4×20 | 22-25 | 3.6 | Y280M-6 | 55 | 22600×4200×4500 | |
| HLQ3020 | Φ3.0×20 | 25-30 | 4 | Y315L2-6 | 132 | 22745×4810×4920 | |
